Single Stall 5 Panel Residential Garage Door System

The Green Hinge Single Stall 5-Panel Residential System is designed for garage doors up to 12 ft wide and includes 8 precision-engineered hinges that automatically adjust your door for a tighter, more energy-efficient seal.

What’s Included

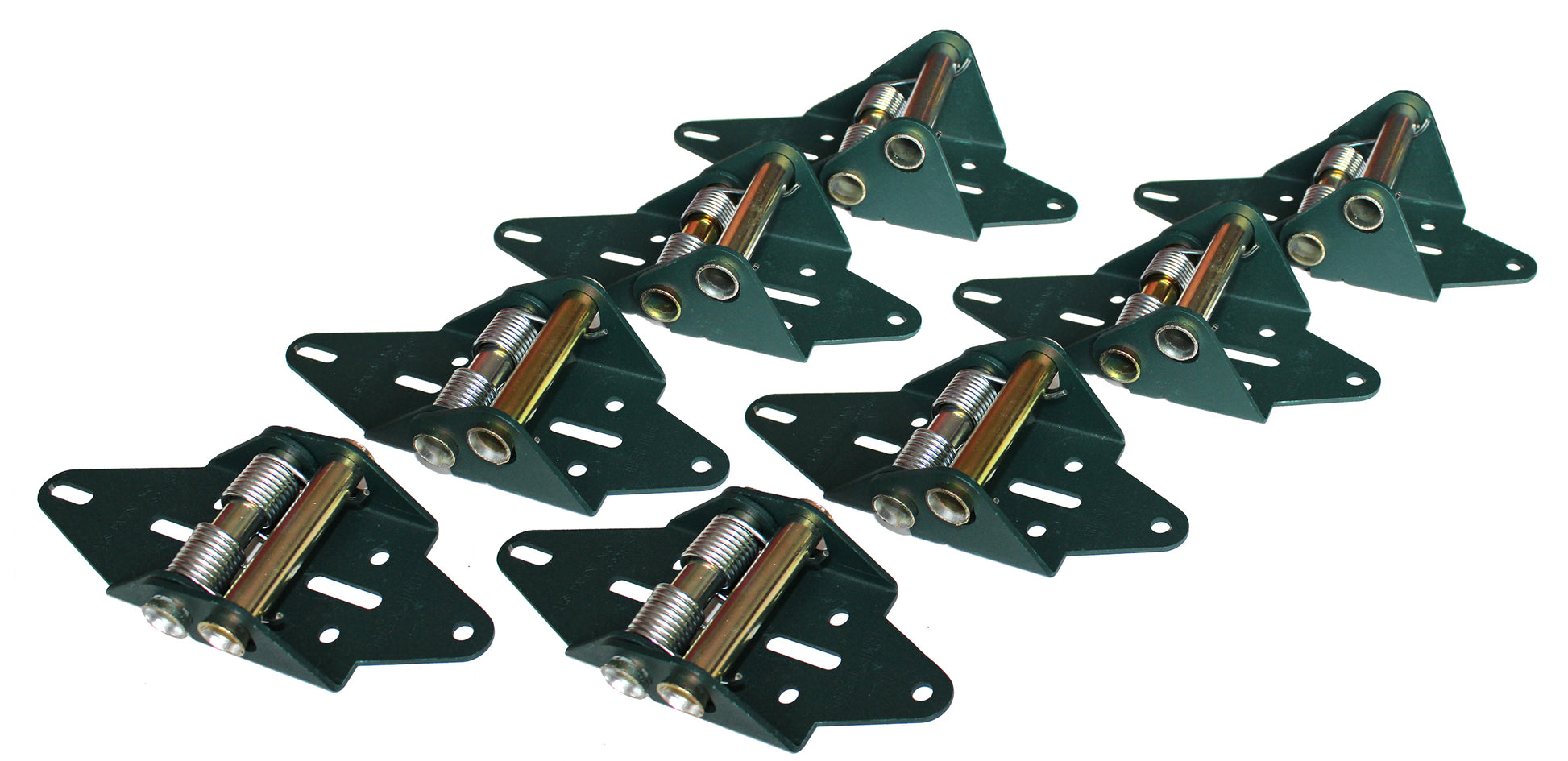

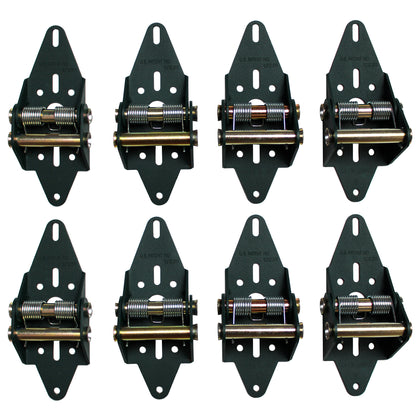

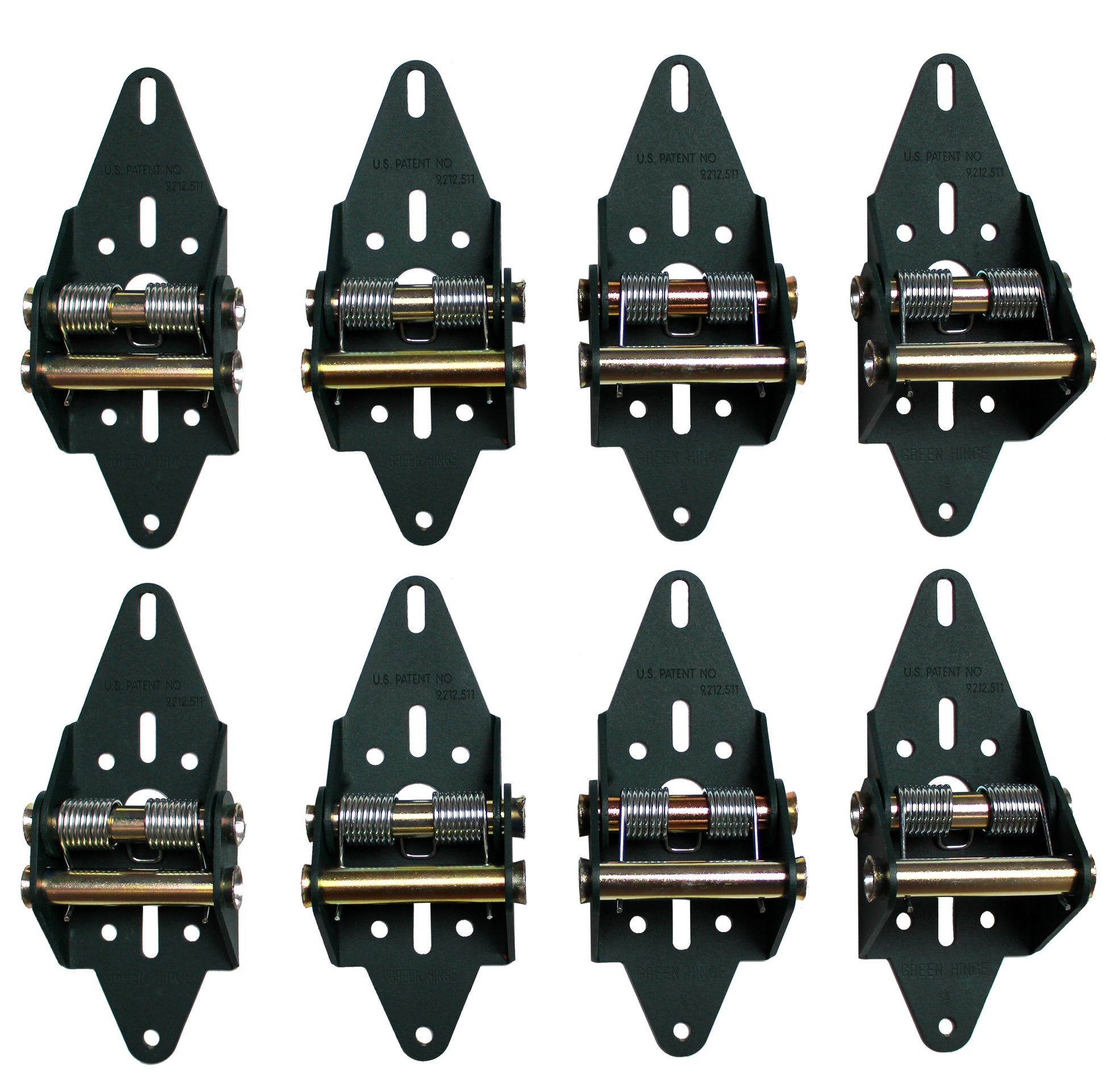

• 8 total hinges
  • 2 × Position #1 Silver Spring
  • 2 × Position #2 Silver Spring
  • 2 × Position #3 Silver Spring
  • 2 x  Position #4 Silver Spring

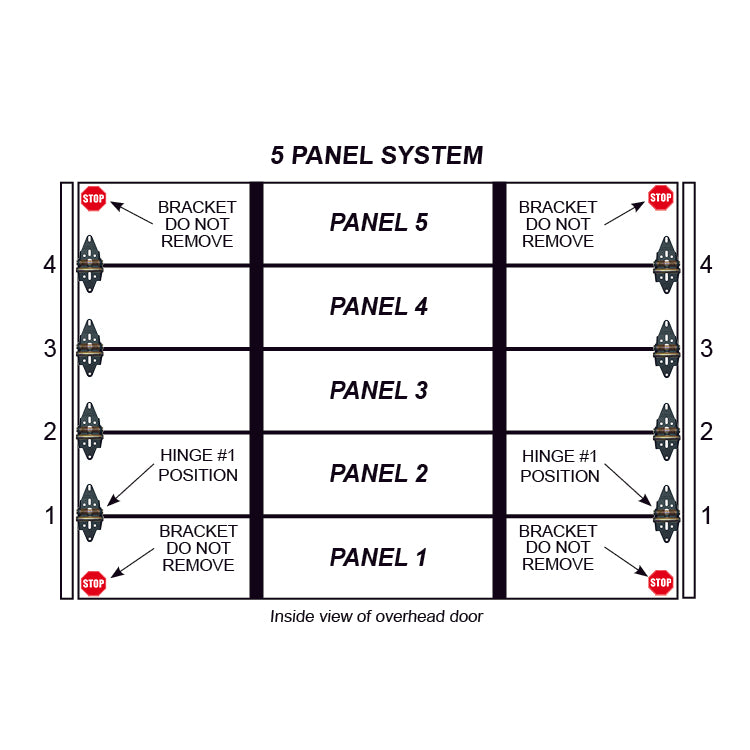

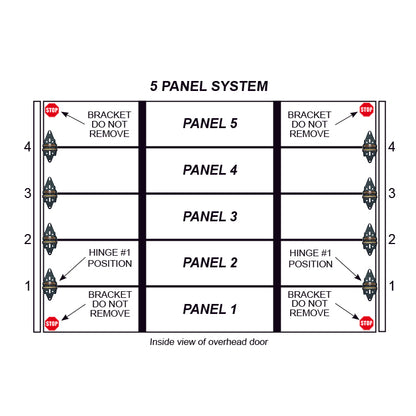

(Hinges are numbered and non-interchangeable.)

How It Works

The patented, spring-loaded Green Hinge System® automatically adjusts each door panel to compensate for warped walls, misaligned tracks, and uneven surfaces. This creates a tight seal at the door’s true sealing surface, the outer panel edge, eliminating air gaps and improving overall door performance.

Unlike traditional weather-stripping that degrades over time and provides little insulation value, the Green Hinge System is built to last and can reduce air gaps by up to ¼ inch, helping lower heating and cooling costs. Many users see a return on investment in as little as 1.5 years.

Key Benefits

• Automatically self-adjusting for a consistent, tight seal
• Reduces drafts, dust, moisture, and energy loss
• Improves door operation and reduces rattle
• Easy to install
• Fits most new and existing residential and commercial garage doors

Built to Last

• Heavy-duty 12-gauge powder-coated steel
• 100% made and assembled in the US
• Lifetime warranty

Important Notes

Please review the installation instructions to confirm panel configuration and door compatibility before purchasing.

Doors 12 ft wide or larger require a 2-Stall System.

Professional installation is recommended.
